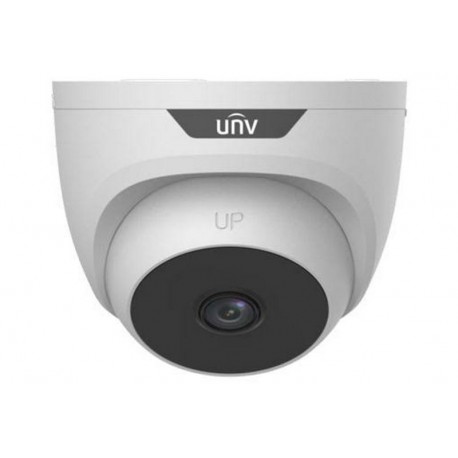

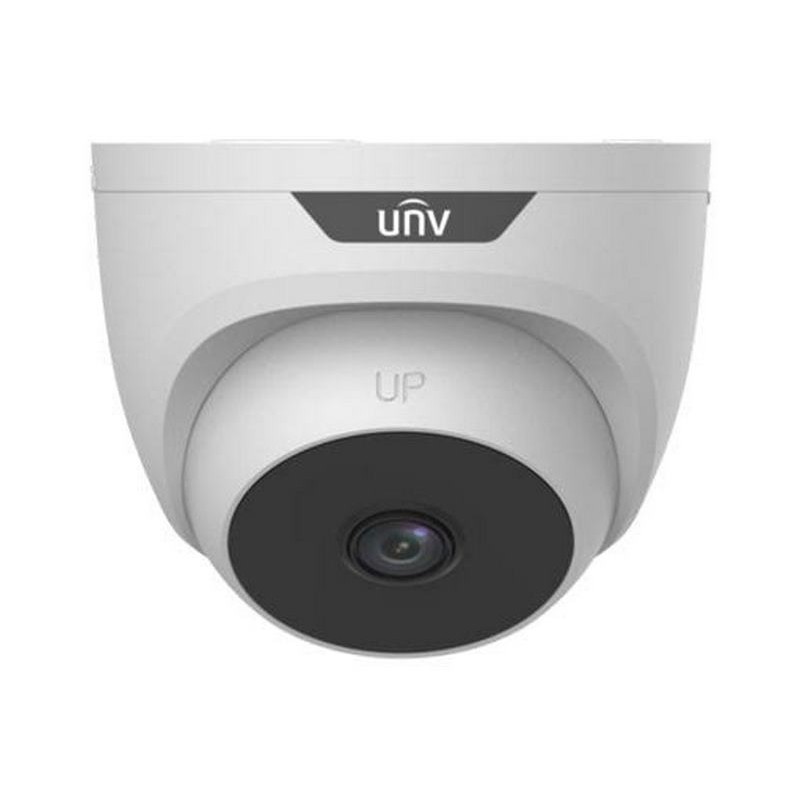

CAMARA F28 DOMO

Pixel

2MP

Size

1/3.2"

Minimum illumination

0.02 lux (F2.0, AGC ON)

0 lux (IR ON)

Lens

2.8mm

4.0mm

Lens mount

M12

Angle of view

H: 99.7°  V: 55.1°  D: 117.1°

H: 87.7°  V: 47.6°  D: 106.9°

Illuminator

One IR illuminator

Illumination distance

20m

Lifetime

≥60,000 hours

Resolution

1080P: 1920(H)×1080(V)

720P: 1280(H) ×720(V)

Frame rate

TVI/AHD/CVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps

CVBS: PAL, NTSC

Shutter time

PAL: 1/25s-1/50000s

NTSC: 1/30s–1/50000s

Exposure mode

Four modes: Global (default), BLC, HLC, DWDR

Day/Night

Three modes: Auto (default), Day, Night

Digital noise reduction

2D/3D

White balance

Two modes: Auto (default), Manual

WDR

DWDR

Smart IR

Support

Flip

Supports 180° horizontal flip, 180° vertical flip

Defog

N/A

Microphone

N/A

Camera audio

N/A

Power

5.5mm power interface

Video output

BNC, supports TVI/AHD/CVI/CVBS

Temperature

-20°C to 60°C (-4°F to 140°F)

Humidity

≤95% (RH, non-condensing)

Surge protection

4kV

Ingress protection

N/A

Power

DC 12V (±25%), with reverse polarity protection, Max 1.9W

Dimensions

Φ85mm*72mm (diameter*height)

Material

Plastic

Weight

89.3g (0.20lb)

EMC

CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)

FCC (FCC 47 CFR part15 B)

Safety

CE-LVD (EN 62368-1)

Environment

CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
